We now have in our rental stock professional FM Radio Transmitters for your upcoming events Drive-In Cinemas, Fireworks Displays, Silent Disco and Sporting Events.

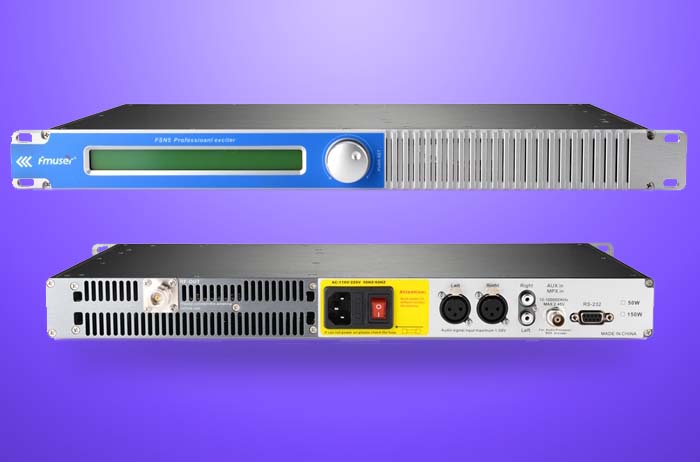

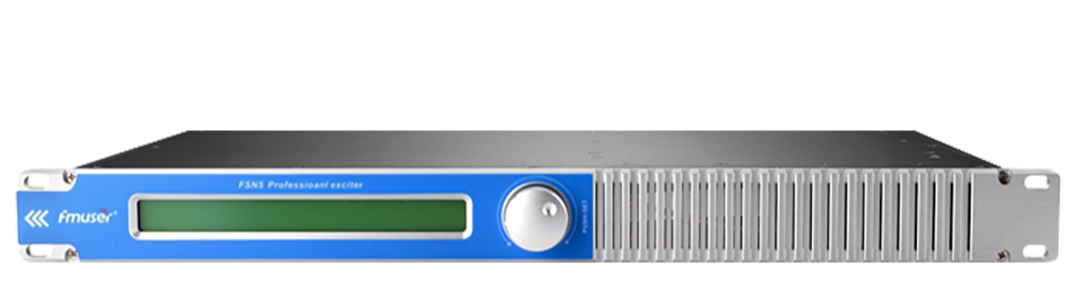

Our FM transmitter is a professional power variable RF output modulator/exciter capable of delivering a variable power from 0.5W up to 50W perfect for any Drive-in Theater or Silent Disco or Fireworks Displays.
FM Transmitters are also known in UAE and KSA as FMMovie transmitters.
RDS allows adding text to the FM signal. This will show on the screen of the FM receiver of your audience.
With RDS, you can transmit broadcast frequency title and scrolling text with important announcements or sponsors messages.

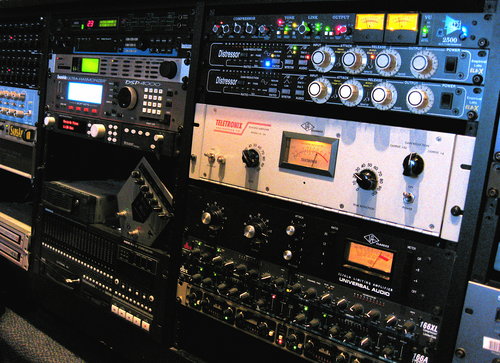

We include studio-grade broadcast equipment to optimize the signal dynamic range before broadcasting it via FM. This is of special importance for movie content with high dynamic range.
No matter the size of your event we can cover a parking lot to an entire city, click below to see the maximum range of this transmitter.
Right now is the best way of watch cinema in your car.
Get helpful information on what’s important to you when choosing your FM services for Drive-In Cinemas in UAE
We process the TRA licence for your event.
Download the latest TRA frequency fee guide here...

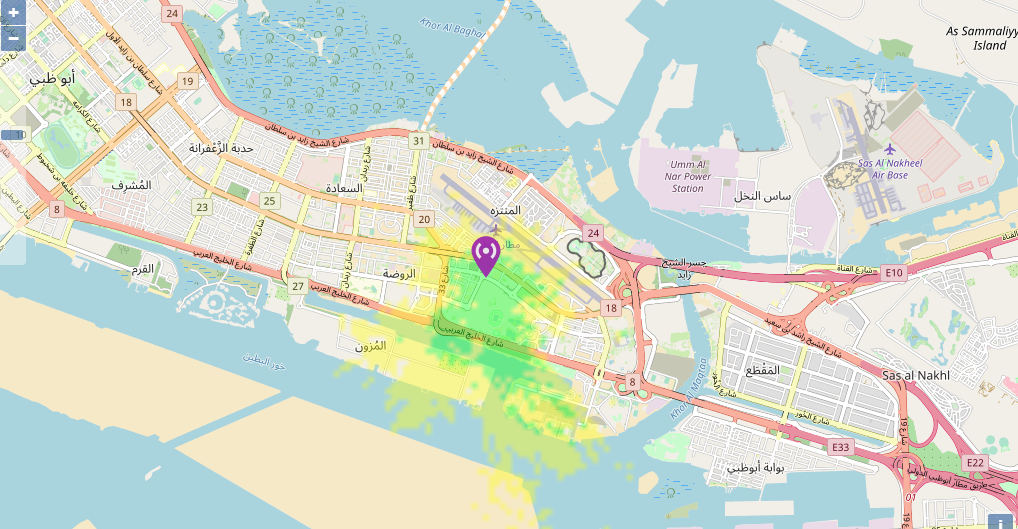

We will provide you with an accurate topographic map prediction of the FM coverage.
See examples here...
We provide all the necessary outboard and accessories for your event application.
Learn why this is important...
*We don't share your info with anyone.
For more contact options follow this link
As an individual, the simple answer is no. As a company, you need to have the correct licence activity and register your device with TRA before switching it on. TRA charges an annual fee to the company for the rights to own an FM transmitter, a separate fee for each registered device and another fee for each day of broadcast.
The TRA uses a formula that includes the Basic Fee (B), Antenna Height above the ground (H), Power Factor expressed in ERP (P) and Service Type Factor (ST) and it is calculated as follows:
Fee = B + ( P x H x ST )
The final say on this calculation will be at the hands of the TRA, UAE.
The service can be given on all emirates for Drive-In Cinemas in Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Al Ain and Umm al Quwain.
Yes. Most professional FM transmitter units are dedicated to convert the audio signal and modulate it into FM and then amplify the RF for broadcast. like most professional equipment they are designed to do one job well.
An FM broadcast audio optimization stage is necessary to keep under control the dynamics of the signal sent to the FM modulator, This unit has a feature called automatic gain control (AGC) with silence detection and multiband companders that makes sure that your FM transmission is within the international broadcast norm. In essence, this step is necessary to optimise the signal for your audience.
Technically is not necessary if you don't want it, the radio will only display the frequency in the screen without RDS. With RDS you can place the title of your event directly into every member of the audience radio screen. You can also send scrolling texts with messages like the movie es about to start or your sponsor text. Please note that as of now it is not clear if TRA requires RDS by default.
To process an enquiry as accurately as possible, we need the following information:
- Event location.
- Event dates (including setup dates).
- Area(s) to cover (aprox).
- Antenna Height (we will calculate the minimum optimal for you)
- Broadcast content.
- Purpose of the event to be broadcast on a letter sign and stamped by the event organizer company.
There are one of the most common questions. How to provide audio for a Drive-In movie theatre? How and FM transmitter works? How to make the connection of the equipment to the FM Transmitter?
In modern Drive-In cinemas, the audio is transmitted using the standard FM Radio Transmitter. All the audience have to do is to tune his car radio to the FM frequency of the Cinema.
At SUBSONIC we provide FM Standard radio transmitters with studio audio quality dynamic processor to adjust the dynamic range of a movie to something that matches the dynamic range of the FM spectrum.
The kit also includes a frequency adjustable dipole antenna to with the best polar pattern without nulls that cause RF noise to appear in the car receivers.
Our FM Transmitters I/O Ports:
2ch Balanced XLR Inputs (+4dBu), RCA unbalanced input (-10dBu) , BNC Aux/MPX for RDS input, RS232 Port for remote management, 50Ω N-Type Female coaxial antenna output.
The benefits of FM Transmission:
FM Stereo is a frequency modulation that happens in real-time, there are no codecs for audio encoding and decoding.
We hope now you know how an FM Transmitter works to Broadcast Audio on a DRIVE-IN movie.
FM Products are divided in in different segments depending on their radio output power. Below is a quick guide that tells you the average coverage of a dipole antenna at 8m over ground level providing there are no major obstacles like elevated terrain.
This is called Low Power RF Transmitter, the output from these FM Transmitters will cover most Drive-In setups. Most times it is necessary to increase the RF output level to overcome the frequency spectrum RF noise.
It is important to consider that no RF Transmitter from this range will have any decent audio processing for dynamics.
A professional dynamic control unit is complex and the ones that provide the best results are the dedicated units to achieve the task of delivering clean pristine and consistent volumes without distortion to the input stages of the FM Transmitter / Modulator.
This output from the FM Transmitter will cover easily most Drive-In and much larger setups. The range is larger than the area but sometimes it is necessary to increase the RF output level to overcome the frequency spectrum RF noise.
This units usually have a basic compander built-in. This is commonly more advanced than the 1W units but limited in processing quality causing ear fatigue due to over-compression of the audio program.

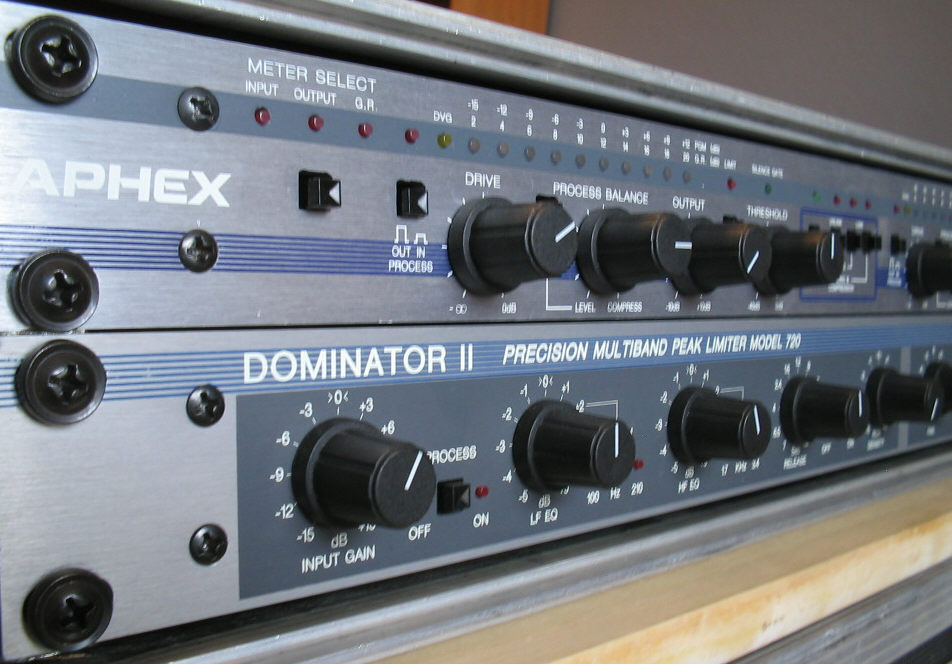

We complement all our FM Transmitters with an APHEX Compeller broadcast processor. One of the industry-standard in FM Transmission dynamic processing delivering a truly enjoyable listening experience to your audience.
This is appropriate for Fireworks Displays like the Dubai Guinness Record, where the spectators could listen to the music that is synchronized with the Pyro Show.
This is most used in FM Radio Stations. Sometimes the use of other types of antennas like an array Helical or Unpolarized antennas is used to mitigate FM waves reflections, shadows from buildings and other structures.
Having a high power single source is more effective than having multiple transmitters on different zones.
As per the current situation people are more comfortable while distancing socially, so a common outdoor cinema PA sound system may not work, especially in the hot and humid weather, let your viewers enjoy the sound of the movies via their FM Radio so they adjust or pump the volume as per their comfort.
Our Professional FM Transmitter and service team allows you to prepare your Drive-in cinema setup with adjustable frequencies & a sound processor to have dynamic movie sound effects, great vocal presence and cinema-like stereo panning of the music and action movies.
We provide all the necessary equipment to avoid interference from other stations broadcasting on a very high power gain near your assigned part of the spectrum. We include an Antenna System, RF cables, Processing, Modulation all in one solution with installation so you focus on your event, providing you with full tech support if dry-hire or full service rental at your doorstep.
